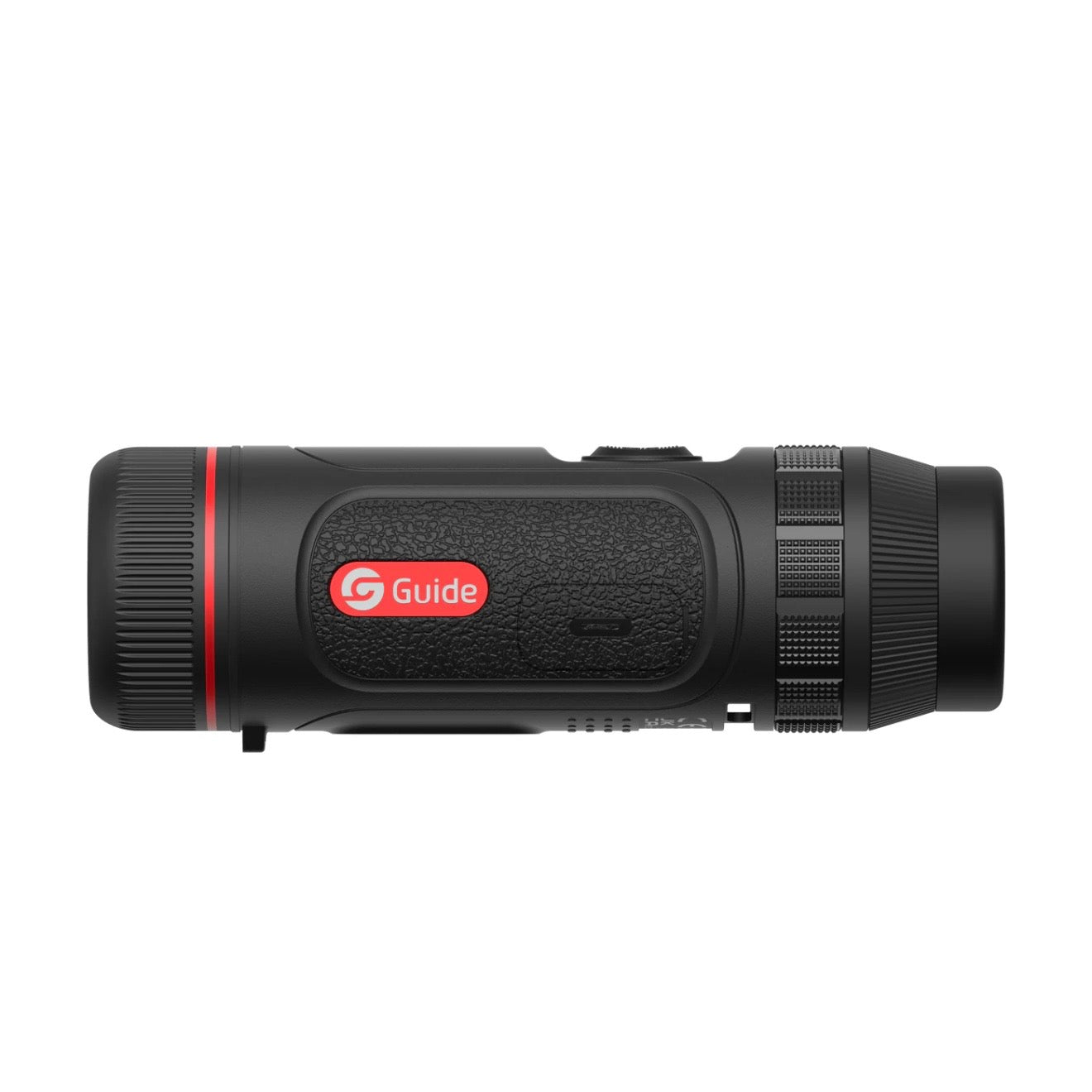

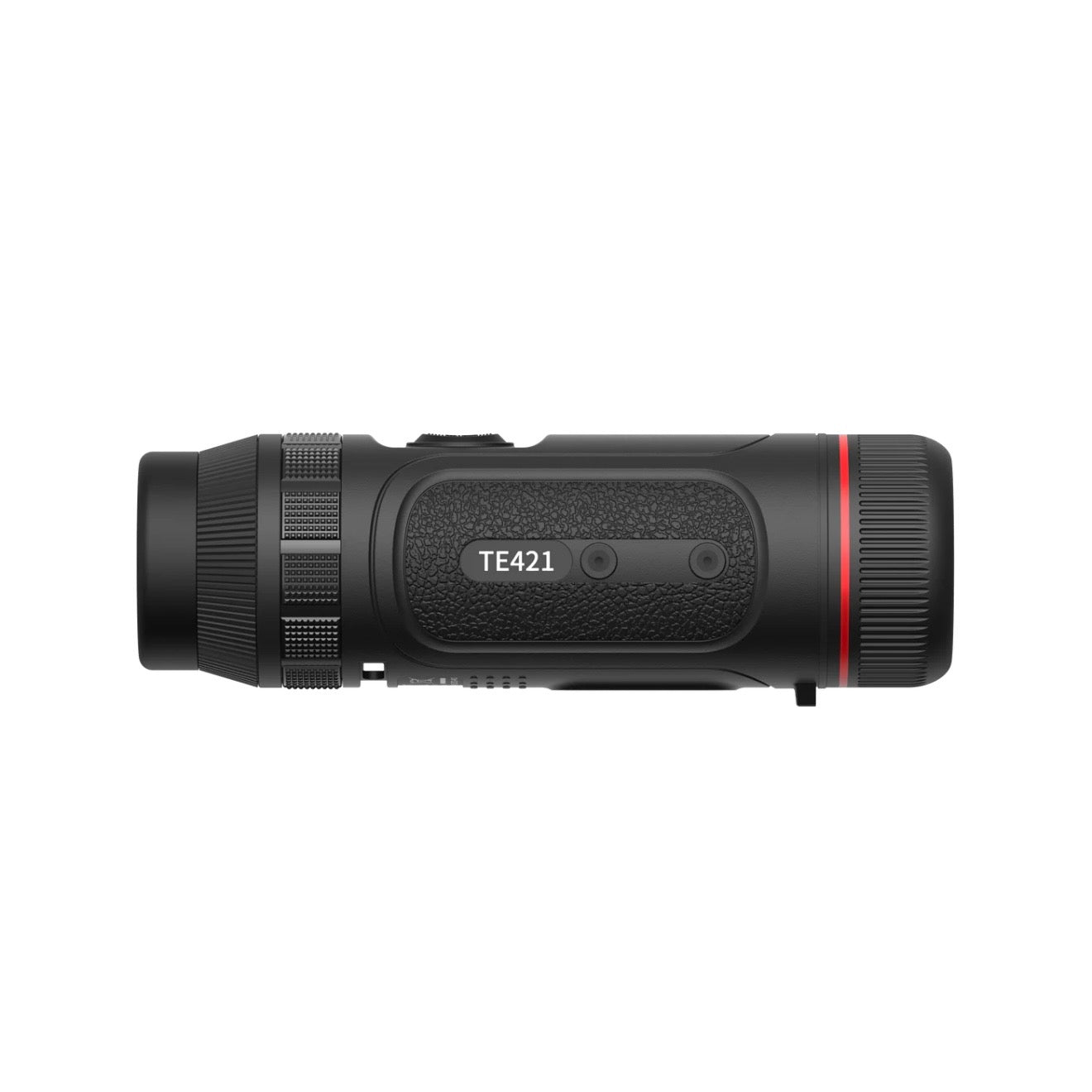

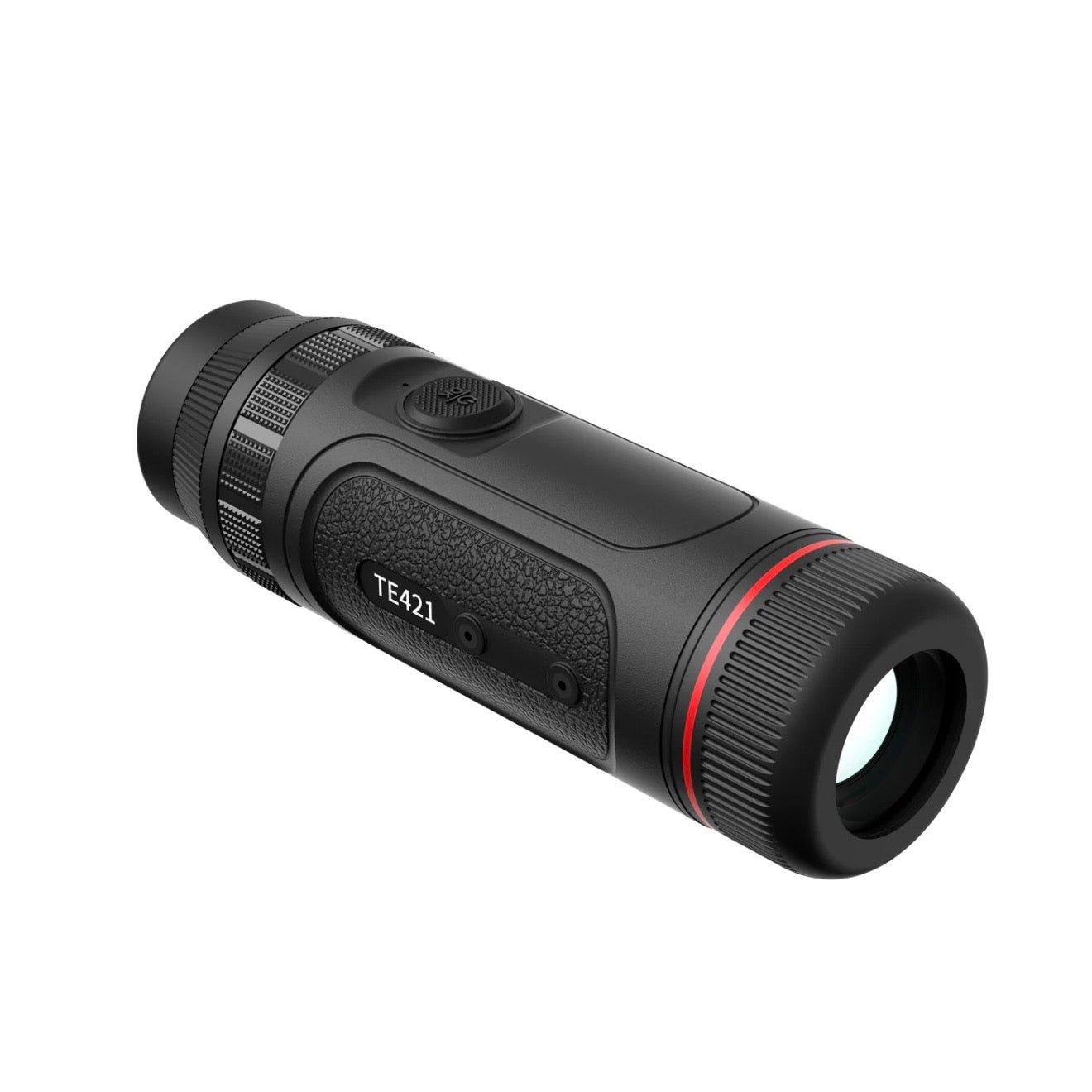

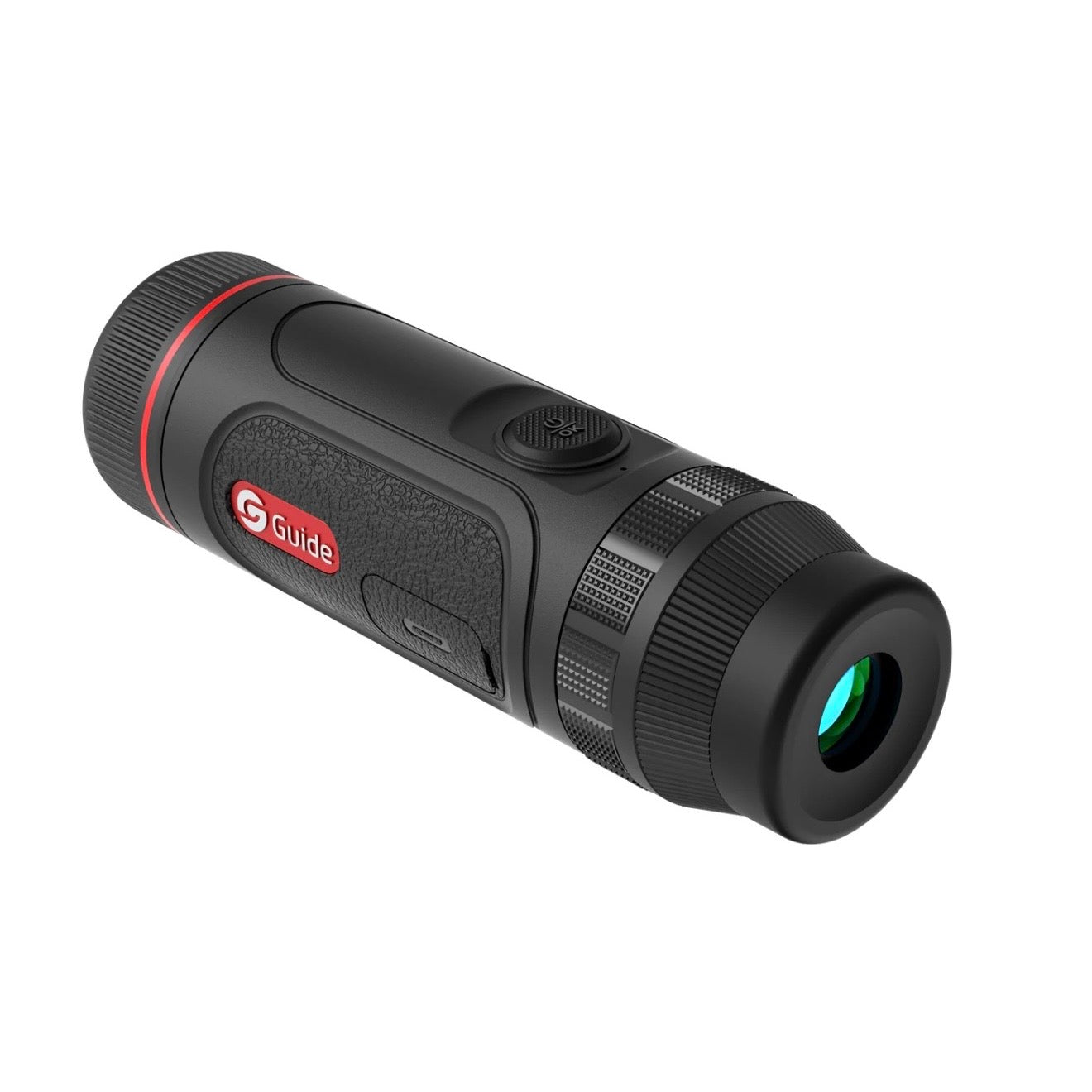

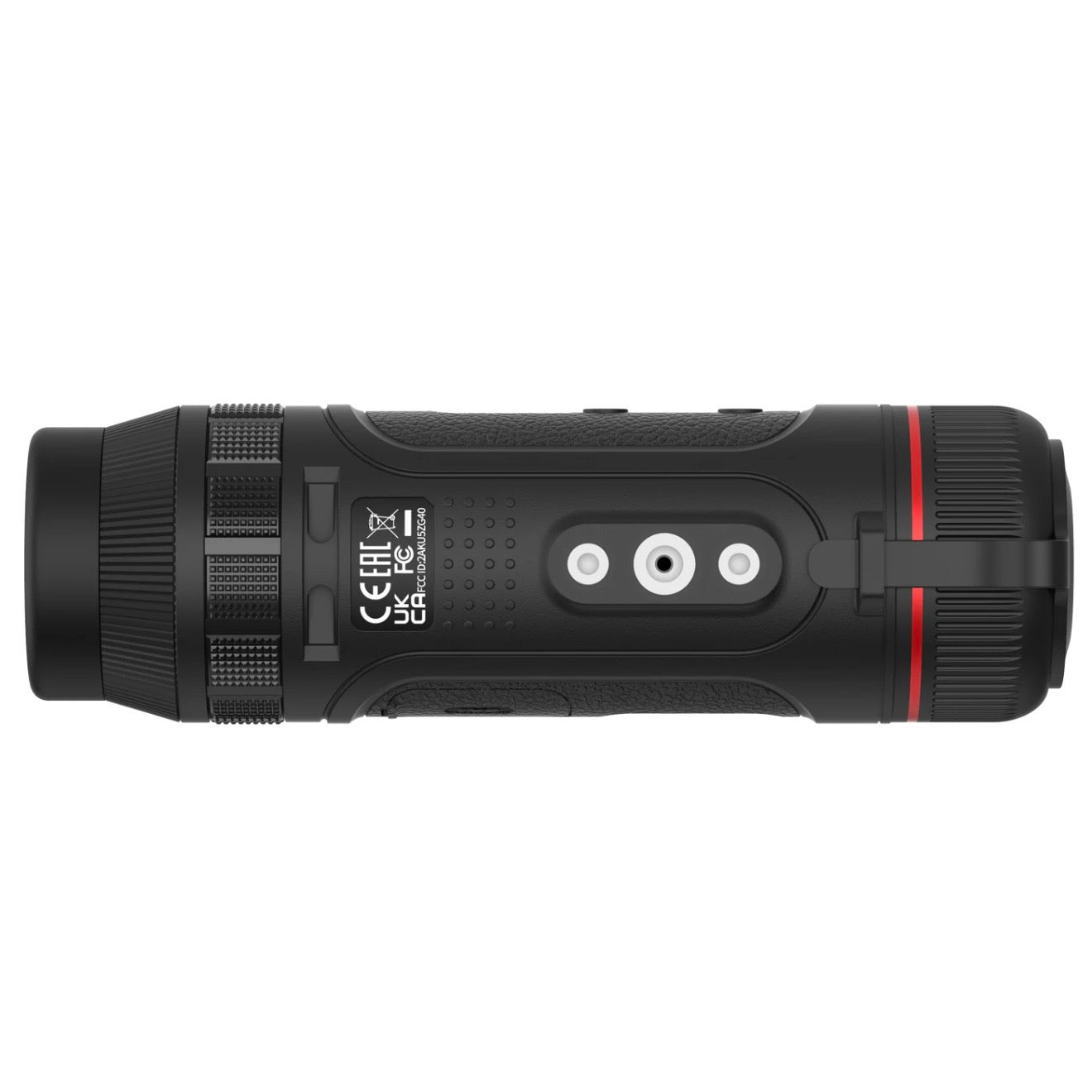

TE421 Thermal Monocular 1.9X 400x300 25mm
TE421 Thermal Monocular 1.9X 400x300 25mm

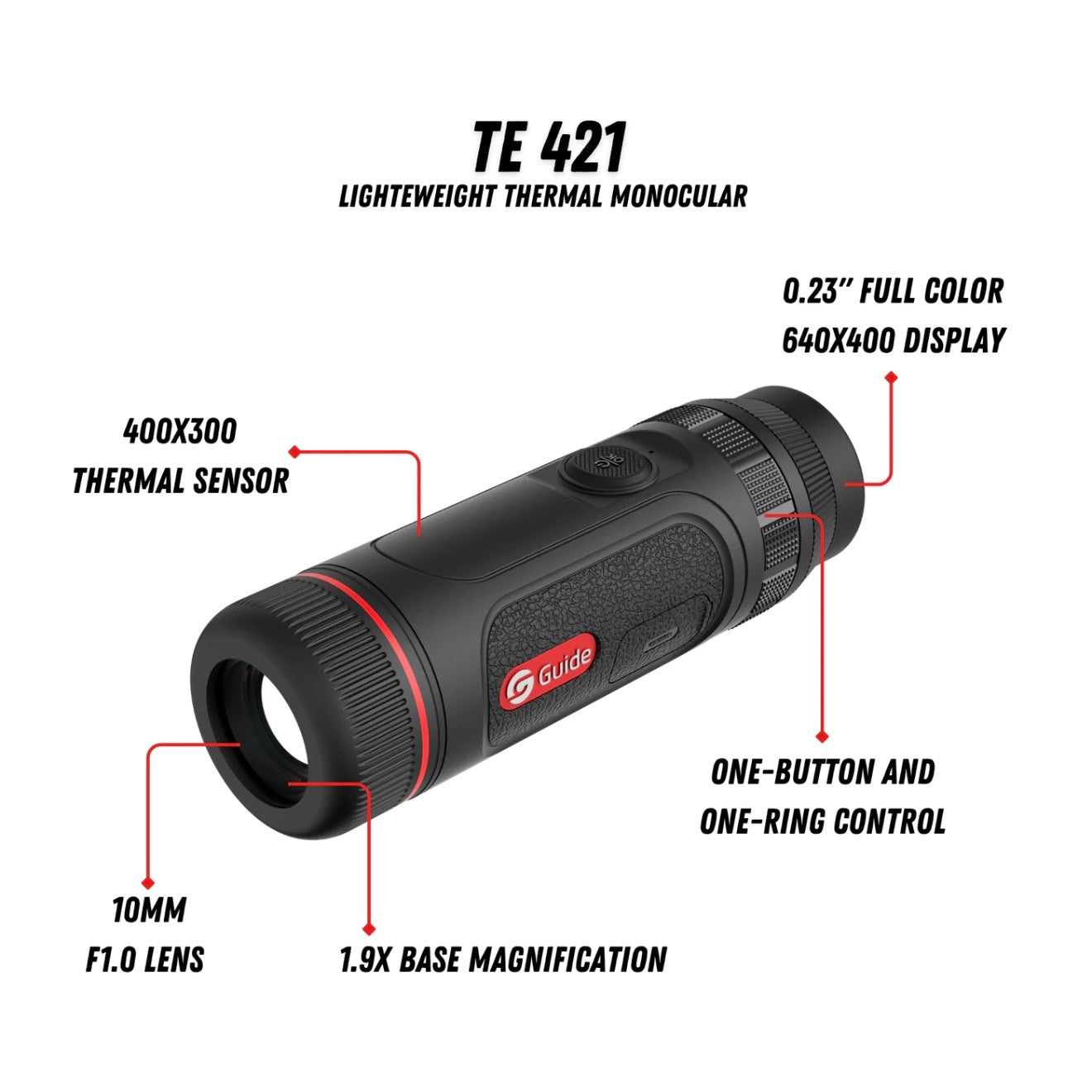

SHARP & LIGHTWEIGHT
- 400×300@12μm Sensor Resolution
- 1400 yd Detection Range
- 0.32'' AMOLED 800×600 full-color screen
- One-button control for smooth operation
- 25mm; F1.0 Focal length
- 25Mk NETD
The TE Series Handheld Thermal Imaging Monocular is your compact and reliable night vision solution. Designed with a 400x300 infrared detector and a 25mm lens, it delivers a powerful detection range of up to 1400 yard. Its 0.32'' AMOLED 800×600 ensures clear infrared image viewing without eye strain.
Perfect for extended use, this pocket-sized device offers up to 1 hour of operation with just a quick 10-minute charge. Lightweight, portable, and efficient, the TE Series is the ultimate thermal monocular for outdoor enthusiasts and night hunters.
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm, F1.0 | |||
| Field of view | 11°×8.2° | |||
| FOV m@100m | 19×14 | |||
| Magnification | 1.9x~7.6x | |||
| Detection range | 1300m/1400yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.32'' AMOLED 800×600 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 25mm; Diopter: -5 to +5; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C, Support charging | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 16GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Built-in battery | |||
| Operating time | 5 hours (Support 20W quick charging) | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 295/11.11 | |||
| Size (mm/in) | 47×47×155/1.85×1.85×6.10 | |||
| Standard | Device, Lens cover, Eye mask, Wrist strap, Quick charging adapter, USB Type-C cable, Quick use guide, Safety Information Manual, Warranty card | |||
| Optional | Bluetooth remote control | |||
